Camloc Pawl Latches

Camloc Pawl latches are designed to secure hinged panels. They have a rotatable actuator on which a radially projecting pawl is connected. The shaft is mounted through the panel, and the pawl engages the frame member.

Two pawl styles are available: wire-form, that is pre-set (use adjustment nut if available) for a desired

Typical Wire-Form Pawl Latch

Typical Wire-Form Pawl Latch

clamping force, and solid arm type with a continuously adjustable pawl, which moves axially when the shaft is rotated.

Camloc Pawl latches are easy to install and accommodate a large grip range. They provide an easy way to specify a reliable, low installed cost door latch to a product.

Typical Solid Arm Pawl Latch

Typical Solid Arm Pawl Latch

Solid arm pawl latches can apply higher compression loads for use with gaskets or when tight lock-down of panel to frame is required.

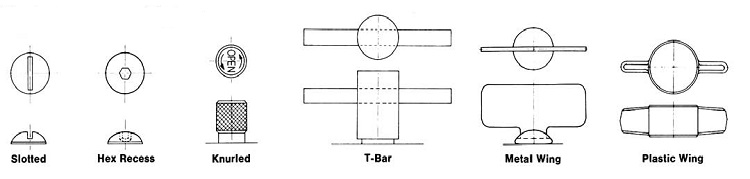

Typical Actuator Styles

actuator styles

Latches are shown actual size. Illustrations are typical only, and size may vary by part numbers.

65L, 106L, 122/123L series latches


Series Number

Page Number

Specifications

Actuator Styles

Installation Method

Grip (inches)

Pawl Type

Locking Rotation

Tool Operated

Hand Operated

Mechanical Mounting Version

Weld-on Mounting Version

Single Hole Mounting Version

64L

H-44 - H-45

.600 MAX

Wire

Clockwise

65L

H-46 - H-47

.740 MAX

Solid

Clockwise & Counter-Clockwise

106L

H-48 - H-51

.370 MAX

Wire

Clockwise

122L/123L

H-52 - H-55

Solid

Clockwise

• = Illustrated in catalog.

H-43
