Camloc Flush Mounted Panel Latches - 118L Series

Panel Preparation and Installation Data

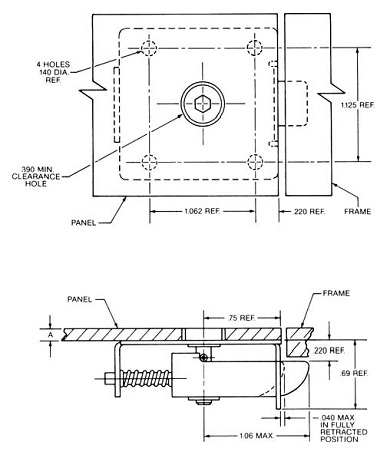

Tool Operated

tool operated

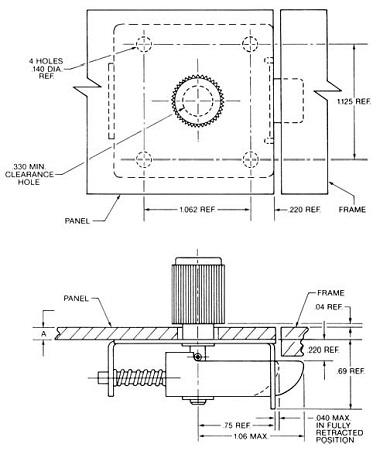

Hand Operated

hand operated
  1. Select proper latch to meet your panel thickness requirement (see table at right).
  2. Locate and form 4 mounting holes. 140 diameter reference and 1 clearance hole (see following table).

    3. Basic Part No.

    Clearance Hole Diameter Ref.

    118L08

    .390

    118L09

    .33
  3. Attach with No. 5 machine screws (not supplied).
  4. For hand operated versions, press on plastic knob after mounting latch to panel.

Description

Part No.

A Ref. Panel Thickness

Tool Operated

118L08-1-1AA

.120 (See Note)

118L08-1-2AA

.180

118L08-1-3AA

.240

118L08-1-4AA

.300

118L08-2-2AA

.180

118L08-2-3AA

.240

118L08-2-4AA

.300

Hand Operated

118L09-1-1AA

.060

118L09-1-2AA

.120

118L09-1-3AA

.180

118L09-1-4AA

.240

118L09-1-5AA

.300

118L09-2-1AA

.060

118L09-2-2AA

.120

118L09-2-3AA

.180

118L09-2-4AA

.240

118L09-2-5AA

.300

Note: If installation requires flush actuator on panel less than .120, spacers will be required between panel and latch.

H-61
