Camloc Latches 69L Series

Features

  • Adjustable threaded drawhook.
  • Low Profile.
  • High strength to weight ratio.
  • Available with base permanently assembled by factory or loose for assembly at user's convenience.
  • Under-center toggle geometry insures positive lock-up even with latch and strike mounted on different planes.

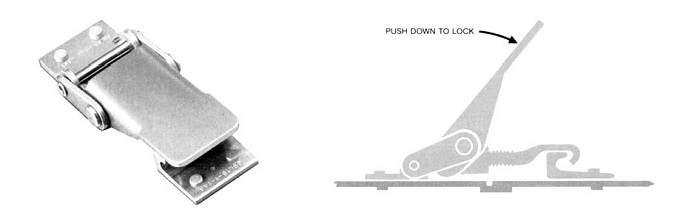

69L latches

Strength: 300 pounds ultimate; 200 pounds working.

Basic Configuration
Steel base, mechanical attachment illustrated.

drawhook

Alternate Bases
See Table below for ordering information.

steel and aluminum bases


Latch Description

Material

Latch Part No.
(Includes Base)

Weight Per Piece (lbs.)

A REF.

Assembled

Unassembled¹

With Steel Base/Mechanical Attachment

Steel (Cadmium Plated) Except Weld-on base supplied unfinished (Oil Coated)

69L33-1-1AA

--

0.06

2.36

With Steel Base/Weld-on

69L38-1-1AA

69L37-1-1AA

0.07

2.43

With Aluminum Base/Mechanical Attachment

Steel (Cadmium Plated); Base: Aluminum (Unfinished)

69L38-1-3BA

69L37-1-3BA

0.06

2.10

With Aluminum Base/Weld-on

69L38-1-2BA

69L37-1-2BA

2.36

With Aluminum Base/Mechanical Attachment

Steel (Zinc Plated); Base: Aluminum (Unfinished)

69L38-1-3BC

--

2.10

Note:

  1. Unassembled latches allow the base to be installed first with the balance of the latch (supplied fully assembled) to be joined at some future time. Unassembled latches are supplied with a cotter pin pivot in lieu of the permanent solid pivot supplied on factory assembled parts.
