58L Series Camloc Latches

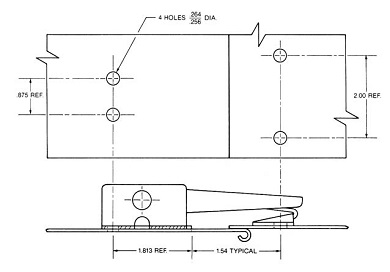

Basic Version

58L basic version

Short Handle Version

short handle version


Attachment

  1. Locate and form holes (see illustrations).
  2. Attach with correct size bolts or rivets, not supplied(see table).

Description

Part No.

Recommended
Bolt or Rivet Dia.

Basic Latch

58L1-1-1AA

1/4

58L1-1-1AB

58L1-1-1BD

Short Handle Latch

58L3-1-1AA

No. 10 Bolt or 3/16 Rivet

Strike

58L7-1AA

1/4

58L7-1AB

58L7-1BC

H-41
